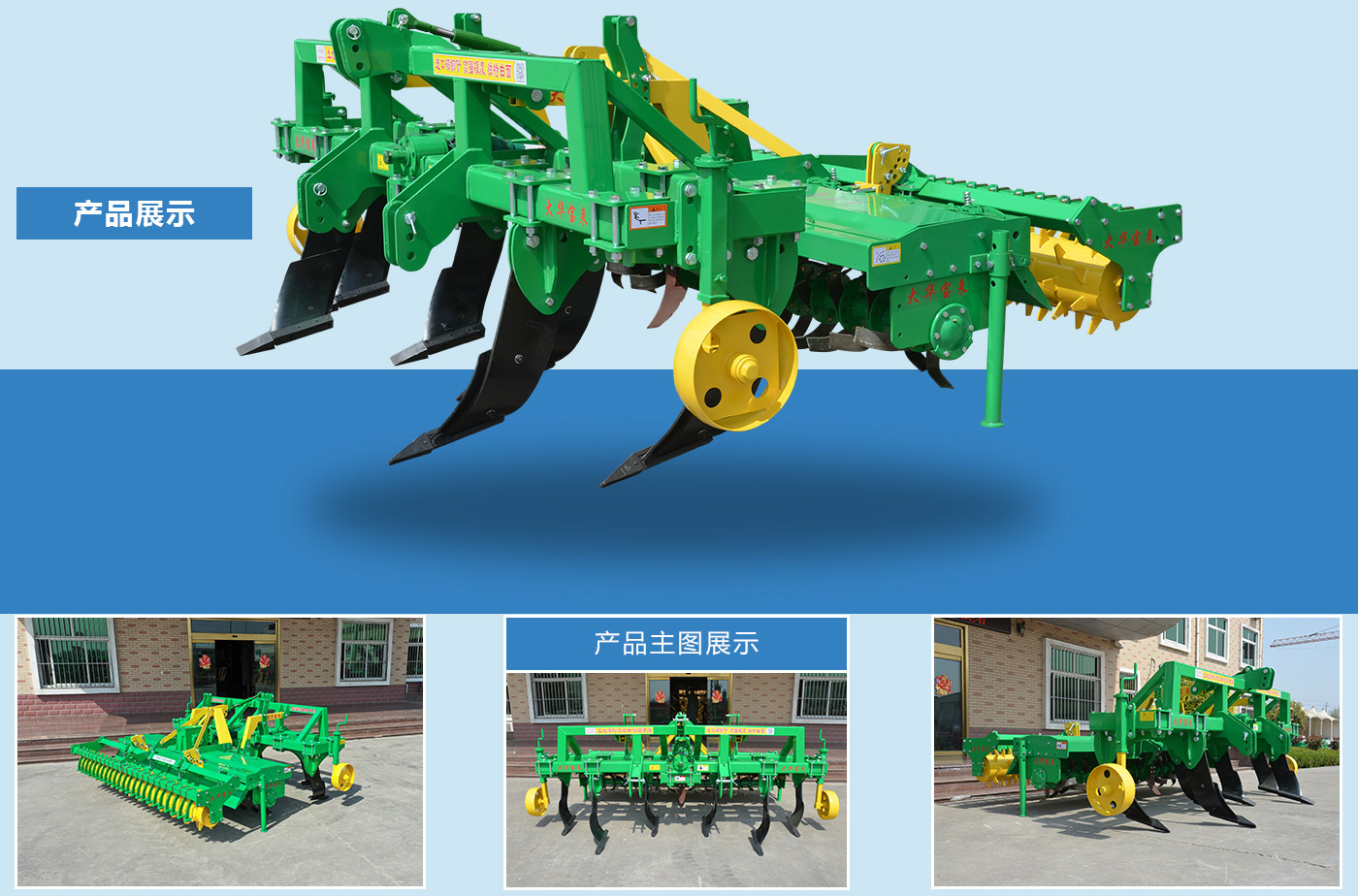

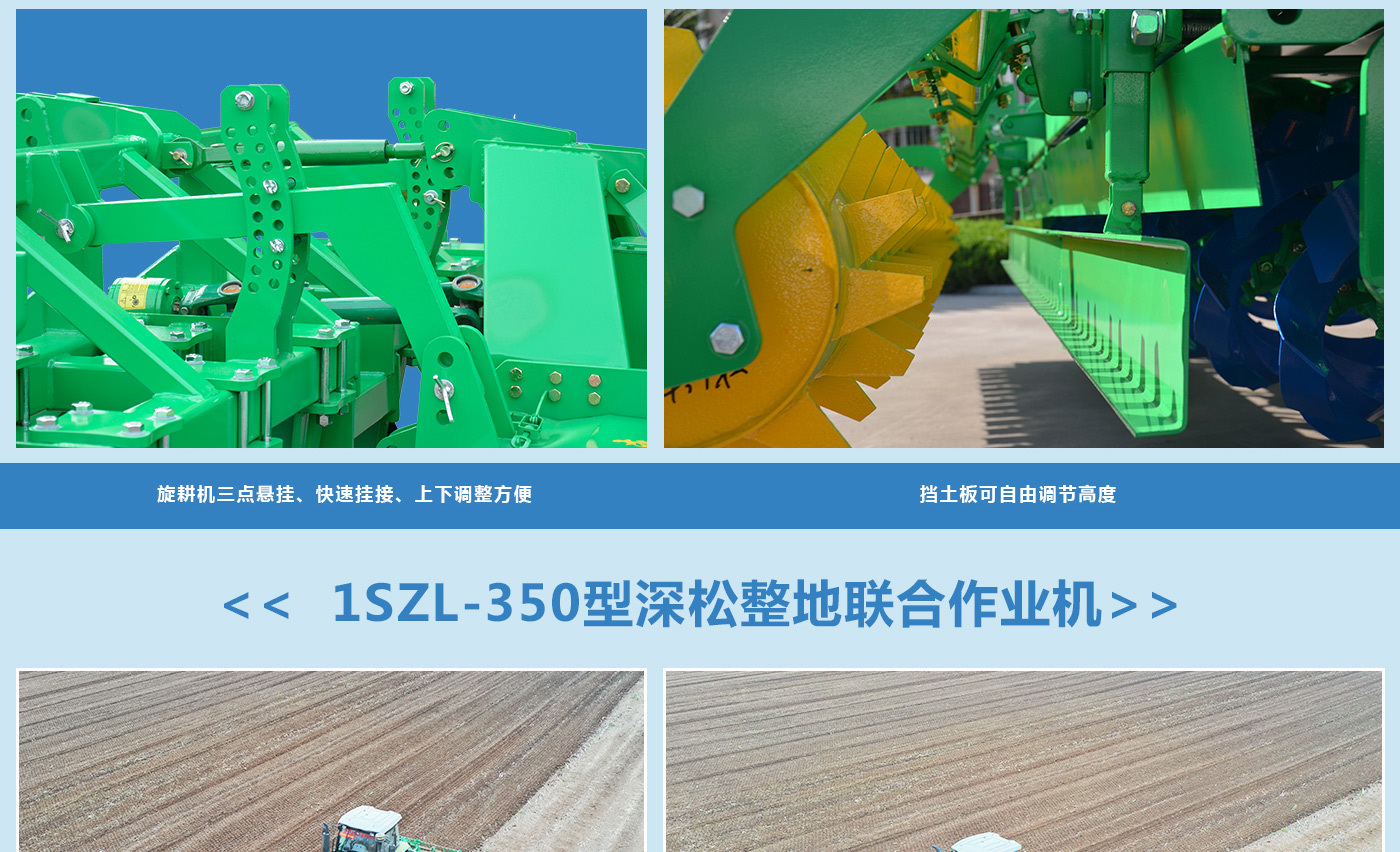

1SZL-350
所属分类 :
产品描述
产品规格 Technical Specificaions |
深松整地联合作业机 Subsoiling and land preparing combine machinery |
||||||||
产品型号 Model |
单位 Unit |
1SZL-200 | 1SZL-230W | 1SZL-250 | 1SZL-270 | 1SZL-300 | 1SZL-350 | 1SZL-420 | |
配套动力 | kw | 81.0~99.3 | 92~110.3 | 92~110.3 | 102.9~121.3 | 106.58~121.3 | 132.3~191.1 | 154.4~191.1 | |
外形尺寸(宽) Total Width (W) |
mm | 2500 | 2500 | 2900 | 3100 | 3100 | 3100 | 3100 | |
外形尺寸(长) Total Lenght (L) |
mm | 2300 | 2500 | 2900 | 2980 | 3950 | 4400 | 5030 | |
外形尺寸(高) Total Height (H) |
mm | 1410 | 1410 | 1410 | 1425 | 1500 | 1500 | 1515 | |
工作幅宽 Working Width |
cm | 200 | 230 | 250 | 270 | 300 | 350 | 420 | |
结构质量 Weight |
kg | 1680 | 1880 | 2045 | 2290 | 2390 | 2650 | 2900 | |
深松铲结构型式 Structure type of subsoiling shovel |
/ |
偏柱式曲面铲 curved surface |
偏柱式曲面铲 curved surface |
偏柱式曲面铲 curved surface |
偏柱式曲面铲 curved surface |
偏柱式曲面铲 curved surface |
偏柱式曲面铲 curved surface |
偏柱式曲面铲 curved surface |
|
工作铲数 Shovel number |
个 pcs |
4 | 4 | 4/6 | 6 | 6 | 6 | 8 | |
铲间距 | cm | 55 | 58 | 62/42 | 45 | 52 | 55~70 | 55~60 | |
深松深度 Subsoiling depth |
小铲 Small shovel |
cm | 25~35 | 25~35 | 25~35 | 25~35 | 25~35 | — | — |
中铲 Middle shovel |
cm | 25~45 | 25~45 | 25~45 | 25~45 | 25~45 | 25~45 | — | |
大铲 Big shovel |
cm | 25~50 | 25~50 | 25~50 | 25~50 | 25~50 | 25~50 | 25~50 | |
整地深度 Ground preparation depth |
cm | 8~18 | 8~18 | 8~18 | 8~18 | 8~18 | 8~18 | 8~18 | |
生产效率 Operation efficiency |
hm2/h | 1~1.4 | 1.1~1.6 | 1.3~1.8 | 1.3~1.9 | 1.5~2.1 | 1.8~2.5 | 2.1~3 | |
1、产品符合执行标准JB/T10295-2014《深松整地联合作业机》 | |||||||||
2、生产效率均按作业速度5~7km/h理论数据计算 | |||||||||
3、“— ”表示无此项配置 |
