旋耕机 Rotary Cultivator
匹配25-500HP
深松整地联合作业机 Subsoler
土地深松为农田舒筋活络

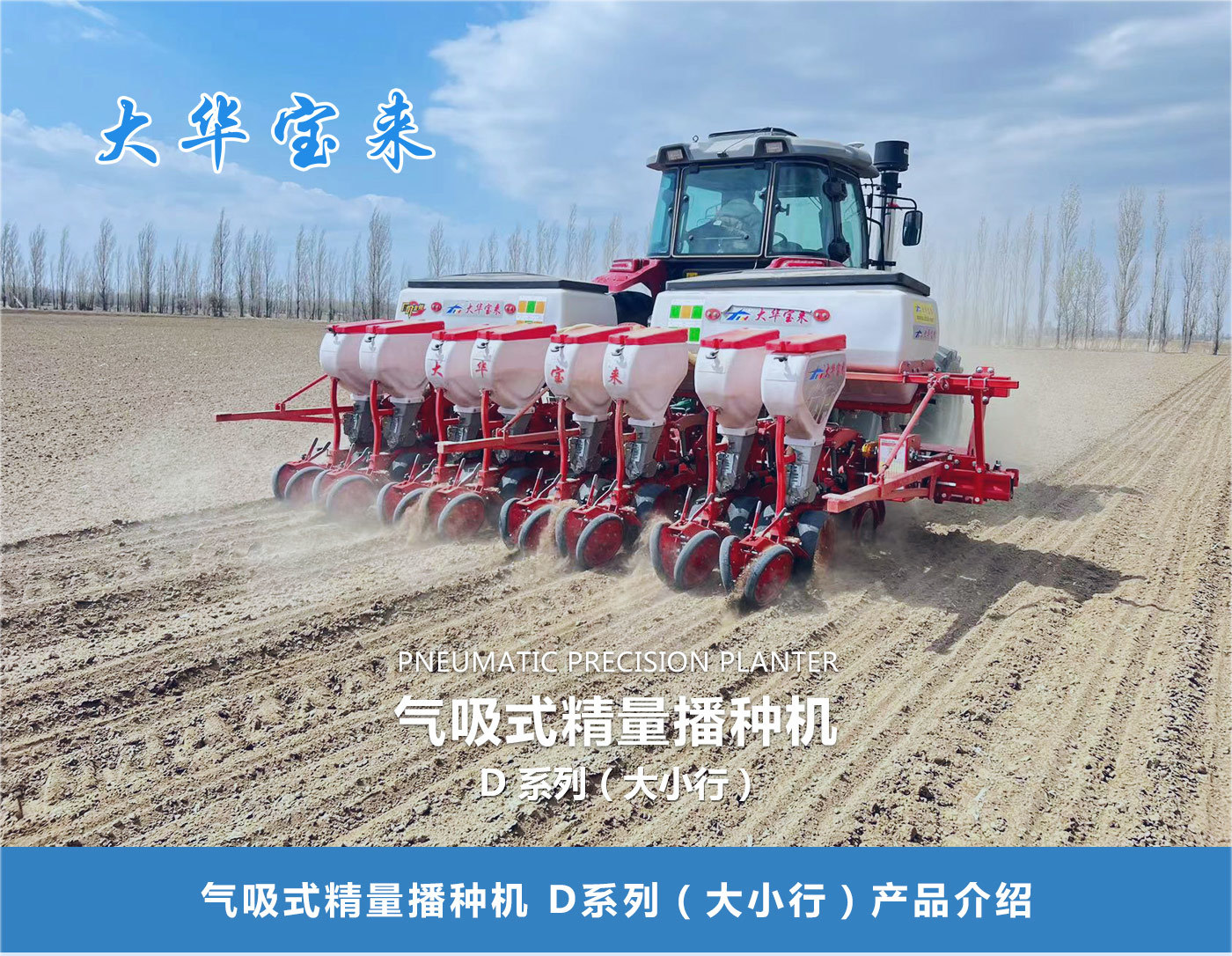

气吸式精量播种机 Pneumatic Precision Planter
多种作多功能智能化
双轴旋耕播种机 Two-axis rotary tiller seeder
适应更多作业环境

2BFGS-15/8(240)

2BFGS-16/8(260)

2BFGS-17/8(280)

2BFGS-18/10(300)


产品描述
技术规格 TECHNICAL SPECIFICATIONS |
气吸式精量播种机 PNEUMATIC PRECISION PLANTER |
|||||||||
产品型号 Product Model |
UNIT | 2BMYFQ-6 | 2BMYFQ-8 | 2BMYFQ-10 | 2BMYFQ-12 | |||||
窄行距(A)/宽行距(B) Space Between Rows (A/B) |
cm | 40/60 | 40/70 | 40/60 | 40/70 | 40/60 | 40/70 | 40/60 | 40/70 | |
工作幅宽 Working Width |
cm | 300 | 330 | 400 | 440 | 500 | 550 | 600 | 660 | |
外形尺寸(长) Total Lenght (L) |
mm | 2000 | 2400 | 2400 | 2400 | |||||
外形尺寸 (宽) Total Width (W) |
mm | 3200 | 3500 | 4200 | 4600 | 5200 | 5700 | 6200 | 6800 | |
外形尺寸 (高) Total Height (H) |
mm | 1850 | 1850 | 1850 | 1850 | 1850 | 1850 | 1850 | 1850 | |
含侧牵引装置 Side Traction Status |
运输长度 (长) Transport Lenght (L1) |
mm | \ | \ | 7600 | 4600 | 5200 | 5700 | 6200 | 6800 |
运输宽度(宽) Transport Width (W1) |
mm | \ | 2400 | 2650 | 2650 | |||||
运输状态离地间隙 (高) Ground Clearance (H1) |
mm | \ | ≥300 | ≥300 | ≥300 | |||||
牵引轮位置 Traction wheel position |
\ | \ | 梁后部 Rear beam |
梁中部 Middle beam |
梁中部 Middle beam |
|||||
结构质量(含侧牵引) Weight(Including side traction) |
kg | 1680 | 2690 | 2750 | 2890 | 2950 | 3290 | 3350 | ||
配套动力 Matching Power |
hp | 100~120 | 130~160 | 150~200 | 160-220 | |||||
播种行数/施肥行数 Seed/Fertilizer |
rows | 6/6 | 8/8 | 10/10 | 12/12 |
